The torque coils manufactured by our company, including Torque coil-DR Tube、Torque coil-TC Tube、TC Tube+1F and TS Tube, can be well applied to medical devices used by doctors.Adjust the number of layers and filars of Torque coil according to different application scenarios to achieve varying degrees of torque transmission, elongation resistance, and flexibility.
0+
Torque transmission
0+
RPM
Speed performance
0+
%
Customizable
PRODUCT DESCRIPTION
TC Tube

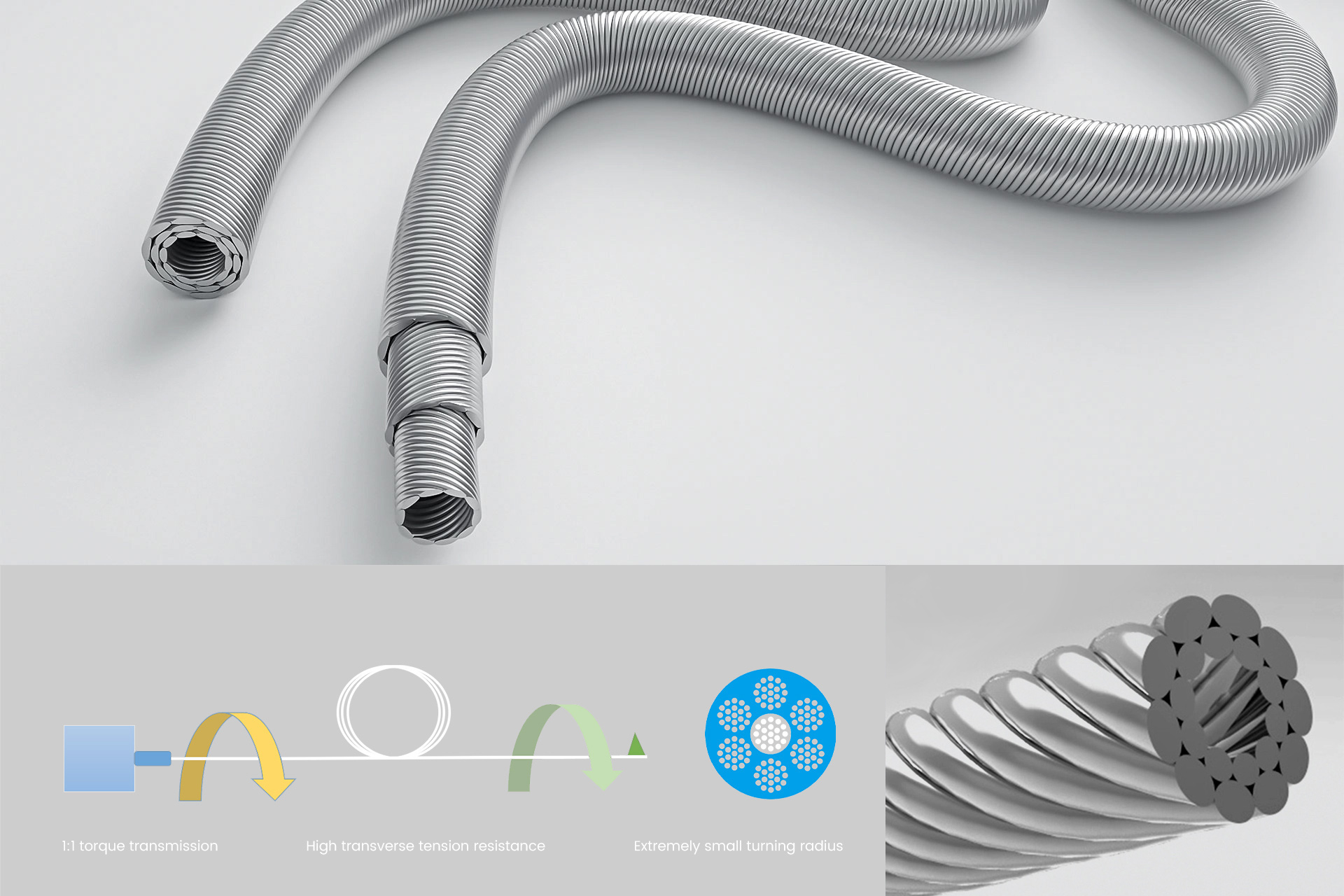

Torque coil, which we call TC Tube, is a kind of tube consisting of multifilar coil. The torque coil we produce can be used in high-speed rotation scenarios, with nearly 1:1 torque transmission from the proximal end to the distal end. At the same time, Torque Coil can also stably and timely transmit torque in very tortuous blood vessels. The raw materials for Torque coil are usually SUS304V, MP35N, NITI alloy wire, and precious metal wire. Respectively meet customers' requirements for torque transmission, flexibility, corrosion resistance, electrical signal transmission, and insulation during the use of torque coils.

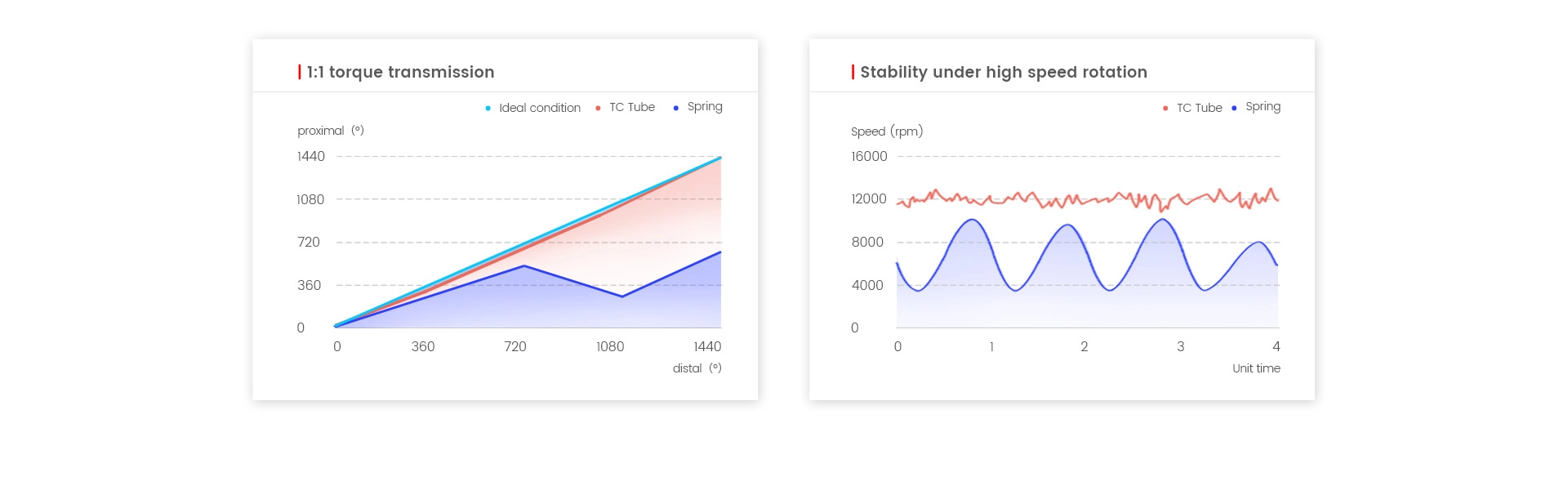

1:1 torque transmission
1:1 synchronous torque transmission
at high rotational speeds
High Speed Performance
Maximum speed performance: 35,000 RPM

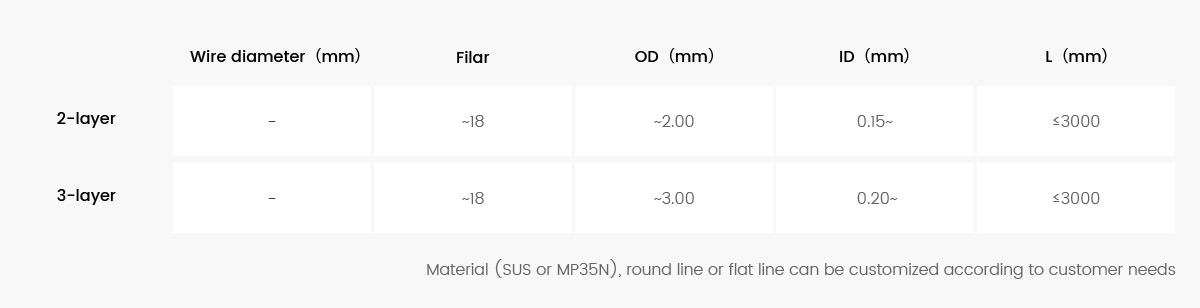

TECHNICAL PARAMETER
Specification

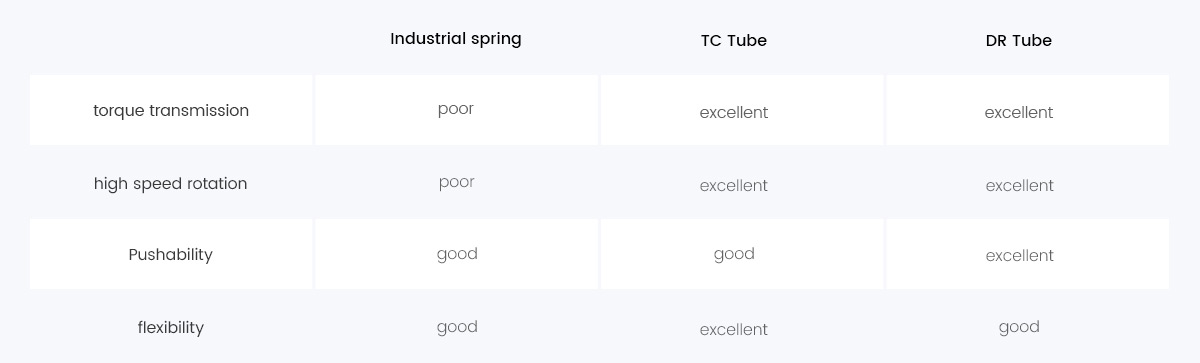

Contrast
