| Quantity: | |
|---|---|
High strength (tensile strength) | High withstand voltage | High straightness | |
General copper wire | 200~300Mpa | 200~1000V | -- |
Copper alloy wire | 650~3000Mpa | ~4000以上 | Radius of curvature＞1000mm |
Suitable for wiring materials of various precision equipment. The small diameter and high straightness make it more operable.
A、Conductor：copper alloy wire
B、Insulation coating
C、bonding coating
Tensile strength：650~3000Mpa
Withstand voltage：≥4000V

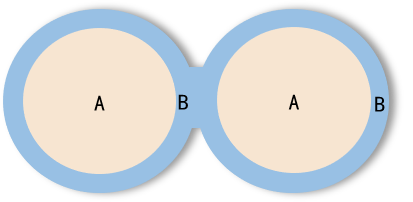

Parallel wire is composed of two enamelled wires connected in parallel, and can be used for the leads of electronic components.
A、Conductor：copper alloy wire
B、Insulation coating
Tensile strength：650~3000Mpa
Withstand voltage：≥4000V
Conductor diameter | Coating thickness | Coating color | Coating materials | Processing method |
Φ0.02-0.20mm | 1.5-20μm | Red, blue, green etc | PA、PI etc | Twisted wire, straight wire, parallel wire |
Coating material | Feature |
PU(聚氨酯) | Can be soldered without stripping the coating |
PI(聚酰亚胺) | Heat-resistant and corrosion-resistant |
PA(聚酰胺俗称尼龙) | Smooth |
氟化乙烯树脂 | Heat-resistant, corrosion-resistant, smooth, but slightly thicker than the above |
热缩层材料 | Bondable after heating |
Wiring materials for fine-pitch electrical testing equipment.
Internal wiring materials for various medical devices.
Wiring materials inside automation equipment.
Wiring materials used within or between precision wiring
Parallel wires can also be used as wires on thermistors and sensors.
